If you use SmartCS to create a monitoring network, you can reliably access the console ports of monitoring equipment that are connected to SmartCS, even if certain operational network problems exist. SmartCS can help you significantly reduce maintenance costs.

Network automation with console server


The environment surrounding network operations is changing rapidly. Automation is required to reduce the burden of operations and to handle tasks more accurately and flexibly.
SmartCS enables you to implement automation across all of your devices to meet the needs of today's rapidly changing services.

Seiko Solutions Inc. is a certified partner of the Red Hat Ansible Automation Platform. The SmartCS Ansible module is supported by both Seiko Solutions and Red Hat, enabling it to be used in combination with other vendors' modules to make your network environment more powerful and comfortable.

Furthermore, SmartCS is expected to be compatible with the access management software SmartJumper. For more details about SmartJumper, please refer to the announcement and flyer.

Announcement: Introducing SmartJumper: Streamlined Access Management Solution for IT Systems
Flyer: Achieve Secure and Intuitive Device Operations with SmartJumper




Console Servers - the Lifeline for IT Administrators

Corporate networks operate 24/7. To operate these networks safely, securely and stably, it is essential to accurately grasp and manage the operational status of network devices such as servers and routers under strong security.

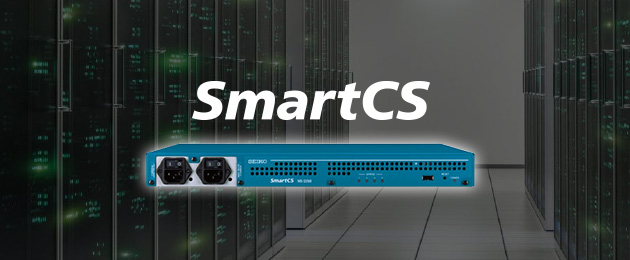

The console server SmartCS series can accommodate up to 48 console ports, facilitating the construction of a lifeline that allows reliable access to target devices even in the event of a network failure.



Console Consolidation

The management serial port (physical console port) of various network devices is the "last lifeline" that can be reliably accessed at any time, and also plays a very important role in outputting messages such as equipment failure.

A console server consolidates these console ports, enabling centralized management.
By placing SmartCS to a management network separate from the service network, it is possible to access the management console of network devices via SmartCS even during network device failure. Telnet / SSH is supported for access to the SmartCS from the operating terminal, allowing secure console port access over LAN/WAN.


SmartCS not only provides access to the console port of a network device but also has the ability to log communications that pass through the console port.
The console port outputs various important messages during the process of starting/stopping the device, and when a failure occurs as well as during normal operation. These messages are automatically stored inside SmartCS and can be sent in various ways such as FTP, TFTP, NFS, syslog, and email.

One example is the acquisition and automatic transfer of operation logs between the device and the management terminal.
In environments where the acquisition of operation logs is required from a security perspective, the combination of SmartCS and various network servers makes it easy to build an automatic acquisition system for operation logs.


SmartCS provides secure console access through access control and encryption. Access methods can be set for each port, and ports can be registered for users with access rights to the ports and the groups to which the users belong. This ensures that access to unauthorized ports is prevented.

Furthermore, by using RADIUS/TACACS+ servers, a common access policy can be applied even in a large-scale network where multiple console servers are operated.
Supports SSHv2 and SFTP cryptographic protocols and public key authentication.
