TS-2550

Time server

Middle range Time Server with built-in high stability OCXO crystal oscillator

High precision time synchronization is possible even if the GPS antenna is installed indoors due to the built-in high performance GPS receiver

  • Oscillator stability: +/-10ms/day
  • Time source: GPS

Features of TS-2550

Features 1  Highly Accurate Time Synchronization

GPS time source enabled high precision time synchronization in plus/minus 1ms accuracy. Stable time can be maintained even if GPS signal is lost using its built-in high precision crystal oscillator (OCXO) in plus minus 10ms/day accuracy.

Features 2  Completely Independent 4 LAN ports

4 LAN ports enable multiple network connections without router, etc.

Features 3  User Friendly Operation

  • Easy setting and maintenance with intuitive GUI (web-based)
  • Alert notification of status change by various ways via SNMP,Syslog and SMTP

Features 4  Unique Function

  • The time monitoring function which monitor the time sync status of the clients
  • Two leap second adjustment methods with gradually mode and immediate mode

Features 5 High Performance NTP Processing

Up to 8,000 NTP requests per second can be handled which is more than 10 times of TS-2210 in processing capability and gives you extra assurance for large scale system.

TS-2550 Specifications

Network
Protocol UDP/IP, TCP/IP, HTTP, SNMP
LAN interface 10BASE-T/100BASE-TX/1000BASE-T 4 ports
IPv4, IPv6
Processing Capability 8,000 packets per second
Time information
Protocol SNTPv3, SNTPv4, NTPv3, NTPv4, TIME, DAYTIME
Authentication methods MD5 authentication, autokey
Built-in Oscillator type OCXO
Oscillator stability +/-10ms/day (+25ºC)
Specifications
Rated voltage AC100~240V+/-10% (50/60Hz)
Rated current(Max) 0.52A
Power consumption 29W
Calorific value 104kJ/h
Operation temperature 0~40ºC
Operation humidity 20%~80% RH (no condensation)
Installation style Rack mount
Dimensions 430(W)×280(D)×44(H)mm (projections not included)
Weight approx. 3.8kg
Certification VCCI-A, RoHS, PSE
Time synchronization
Time source GPS
Correction accuracy to UTC +/-1ms(GPS synchronization)
Leap second adjustment Automatic
Daylight Saving Time supported
Output interface
Pulse output 1PPS
GPS receiver
Input level range 15dBi~30dBi

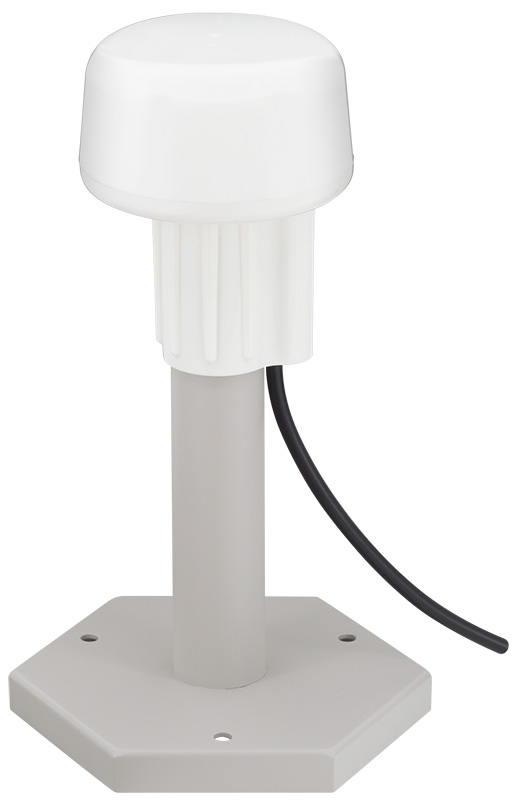

GPS antenna(Bundled)      GPS_antenna
Operation Temperature -30ºC~75ºC
Operation humidity 20%~95% RH (no condensation)
Dimensions φ78×98(H) mm
Weight approx. 570g (10m cable included)
GPS antenna table
Dimensions 127(W)×110(D)×212(H) mm
Weight approx. 550g
