Features of TS-2950
TS-2950 is suitable for a wide range of applications that require high accurate time synchronization
TS-2950 can easily build a time synchronization environment in L2/L3 network with PTP and supports a popular time protocol NTP simultaneously.
Power supply units and fan units with hot swap configuration
Even if a failure occurs, TS-2950 realizes high availability by redundant power supplies and fan units.
Versatile option output units corresponding to various applications
Up to 4 option units are available which can be easily installed and replaced.
Features of TS-2910
Compact size model most suitable for multipoint base deployment
TS-2910 is a best choice for highly accurate time synchronization among mobile backhaul base station.
By installing TS-2910 into LTE-Advanced aggregate base stations it can deliver nanosecond time, frequency and phase synchronization to lower base station.
Redundant time source among aggregate base stations provides high reliability in operation.
Time Server Pro. TS-2950 Specifications

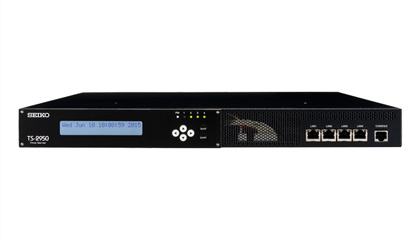

TS-2950
| TS-2950/2952 | ||||||
|---|---|---|---|---|---|---|
| -01 | -10 | -11 | ||||
| Time Sourc | GNSS | GPS | ○ | ○ | ○ | ○ |
| QZSS | ○ | ○ | ○ | ○ | ||
| GLONASS | ○ | ○ | ○ | ○ | ||
| Galileo | ○ | ○ | ○ | ○ | ||
| ToD（BCD） | - | - | ○ | ○ | ||
| ホールドオーバー精度*1 | CSAC (Cesium) | 1us/1Hrs*2 | 1us/1Hrs*2 | |||
| OCXO Type-A | 400ns/5Hrs 1.5us/24Hrs | 400ns/5Hrs 1.5us/24Hrs | ||||
| Leap second adjustment | Yes | |||||
| Summer time | Yes | |||||
| Pulse output | 1PPS, 10MHz (Option) | |||||
| Relay contact output | Yes (Option) | |||||
| LAN interface | TS-2950： 10BASE-T/100BASE-TX/1000BASE-T ×4TS-2952： 1000BASE-SX/LX(SFP) ×2, 10BASE-T/100BASE-TX/1000BASE-T ×2 |
|||||
| PTP | Number of available interface port | 1 | ||||
| Correction accuracy (GPS lock) | UTC within 100nsec | |||||
| Profile | Default Profile (IEEE1588v2) SMPTE Profile (ST 2059-2) |
|||||
| Protocol | IPv4 UDP/ IPv6 UDP/Ethernet | |||||
| Delay mechanism | Delay request-response Peer Delay |
|||||
| Sync. message transmission type | 1 step/2 step*3 | |||||
| Processing capability (max.) | Sync :16 packets/sec Delay_request (receive) : 16,384 packets/sec Delay_response (send) :8 packets/sec Announce : 8 packets/sec |
|||||
| NTP | Number of available interface port | 4*4 | ||||
| Correction accuracy (GPS lock) | ±1msec | |||||
| SNTP | Yes | |||||
| Autokey authentication | Yes | |||||
| MD5 authentication | Yes | |||||
| Processing capability (max.) | 14,000 packets/sec | |||||
| TIME, DAYTIME | Yes | |||||
| HTTP, HTTPS | Yes | |||||
| Telnet, SSH | Yes | |||||
| SNMP | Yes | |||||
| syslog | Yes | |||||
| Mail notification | Yes | |||||
| IPv6 | Yes | |||||
| Characteristics | ||||||
| TS-2950 | TS-2952 | |||||
| Rated voltage | AC100V-AC240V±10% (50/60Hz) *5 | |||||
| Rated current | 0.50A | 0.56A | ||||
| Power consumption | 45W | 47W | ||||
| Calorific value | 162.0kJ/h | 162.9kJ/h | ||||
| Operation temperature | 0 to 40 ℃ | |||||
| Operation humidity | 20 to 80% RH (no condensation) | |||||
| Installation style | Rack mount (fittings included) | |||||
| Dimensions | 430(W) x 500(D) x 44(H) mm (projection not included) | |||||
| Weight | Approx. 10Kg | |||||
| Certificates | VCCI-A, RoHS, PSE | |||||
| Option | GNSS antenna antenna holder power unit module fan module expansion module |
|||||
*1 Depending on the Oscillator (hardware) selected for the required holdover performance. *2 CSAC is very surperior to OCXO in long term stability of frequency.0.3ppb/month (unlock to GPS) *3 In case of IPv6 UDP the operation of the time synchronization can be carried out only in two-step, and the peer delay measurement can be only in two-step too. *4 It supports source address based routing. *5 In case the device is used at AC 240V an applicable AC power cord is necessary.
Time Server Pro. TS-2910 Specifications
TS-2910
| TS-2910 | TS-2912 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| -10 | -20 | -12 | -22 | -10 | -20 | -12 | -22 | ||
| Time source | GNSS（GPS、QZSS、Galileo、GLONASS） | ||||||||
| Holdover accuracy*1 | OCXO Type-C: 1.5us/2Hrs 50us/24Hrs | OCXO Type-A: 400ns/5Hrs 1.5us/24Hrs | OCXO Type-C: 1.5us/2Hrs 50us/24Hrs | OCXO Type-A: 400ns/5Hrs 1.5us/24Hrs | |||||
| Leap second adjustment | Yes | ||||||||
| Pulse output | 1PPS、10MHz | ||||||||
| LAN Interface | 100BASE-TX / 1000BASE-T ×2 | SFP-optical(1000BASE-X) ×1 100BASE-TX / 1000BASE-T ×1 |
|||||||
| SyncEther | Yes | ||||||||
| PTP | Number of available interface port | 1 | |||||||
| Correction accuracy (GPS lock) | UTC ±40nsec (PRTC-B) | ||||||||
| Profile | Defailt Profile(IEEE1588v2) Telecom profile for Frequency (G.8265.1) Telecom profile for phase/time (G.8275.1 , G.8275.2) IEEE802.1AS-2011(gPTP) (Optional lisence required) |
||||||||
| Protocol | IPv4 UDP/Ethernet | ||||||||
| Delay mechanism | Delay request-response (Defailt,Telecom Profile) Peer Delay (IEEE802.1AS-2011) |
||||||||
| Sync. message transmission type | 1 step (Default Profile, Telecom Profile) 2 Step (IEEE802.1AS-2011) |
||||||||
| Processing capability (max.) (Default profile) |
Sync :128 packets/sec*2 Delay_request (receive) : 128 packets/sec*2 Announce : 8 packets/sec |
||||||||
| Maximum connectable number of slave devices | 128*2 | ||||||||
| NTP | Number of available interface port | 2 | |||||||
| Correction accuracy (GPS lock) | ±1msec | ||||||||
| SNTP | Yes | ||||||||
| Autokey authentication | - | ||||||||
| MD5 authentication | - | ||||||||
| Processing capability (max.) | 500 packets/sec | ||||||||
| Telnet, SSH | Yes | ||||||||
| SNMP | Yes | ||||||||
| syslog | Yes | ||||||||
| IPv6 | Supports management functions only (SNMP, telnet, ssh, syslog, ftp, tftp) |
||||||||
| VLAN | Yes | ||||||||
| TS-2910/TS-2912 | |||||||||
| Rated voltage | AC 100V-240V±10% (50/60Hz) *3 | DC -40.5V - -57V | |||||||
| Rated current | 0.34A/0.19A | 0.37A | |||||||
| Power consumption | 20W | 18W | |||||||
| Calorific value | 72.0kJ/h | 64.8kJ/h | |||||||
| Operation temperature | 0 to 50 ℃ | ||||||||
| Operation humidity | 15 to 85% RH (no condensation) | ||||||||
| Installation style | On the shelf (horizontal) | ||||||||
| Dimensions | 208(W) x 282(D) x 44(H) mm (projection not included) | ||||||||
| Weight | Approx. 2Kg | ||||||||
| Certificates | VCCI-A, RoHS | ||||||||
| Option | GNSS antenna antenna holder IEEE802.1AS license |
||||||||
*1 Depending on the Oscillator (hardware) selected for the required holdover performance.
*2 Maximum processing capability depending on the number of the slave are 128 packets/sec for up to 32 nodes, 64 packets/sec for up to 64 nodes and 32 packets/sec for up to 128 nodes.
*3 In case the device is used at AC 240V an applicable AC power cord is necessary.
Time Server Pro. TS-2922 Specifications
TS-2922
| 製品名 | TS-2922 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| -12 | -22 | ||||||||
| Time source | GNSS（GPS、QZSS、Galileo、GLONASS） | ||||||||
| Holdover accuracy | OCXO Type-A : 400ns/5Hrs 1.5us/24Hrs | ||||||||
| Pulse output | 1PPS、10MHz | ||||||||
| LAN interface | SFP-optical(1000BASE-X/10GBASE-R) ×2 100BASE-TX / 1000BASE-T ×1 |
||||||||
| PTP | Number of available interface port | 1 | |||||||
| Correction accuracy (GPS lock) | UTC within 40 nsec (PRTC-B) | ||||||||
| Profile | Default Profile(IEEE1588v2) Telecom profile for Frequency (G.8265.1) Telecom profile for phase/time (G.8275.1) Telecom profile for phase/time (G.8275.2) IEEE802.1AS-2011(gPTP) （Option） |
||||||||
| Protocol | IPv4 UDP/Ethernet | ||||||||
| Delay mechanism | Delay request-response （Default Profile, Telecom Profile） Peer Delay（IEEE802.1AS-2011） |
||||||||
| Sync. message transmission type | 1step（Default Profile, Telecom Profile） 2step（IEEE802.1AS-2011） |
||||||||
| Processing capability (max.) (Default profile) |
Sync :128 packets/sec*1 Delay_request (receive) : packets/sec*1 Announce : 8 packets/sec |
||||||||
| Maximum connectable number of slave devices | 1024*1 | ||||||||
| NTP | Number of available interface port | ー | |||||||
| Correction accuracy (GPS lock) | ー | ||||||||
| SNTP | ー | ||||||||
| Autokey authentication | ー | ||||||||
| MD5 authentication | ー | ||||||||
| Processing capability (max.) | ー | ||||||||
| SyncEther | ○ | ||||||||
| Telnet、SSH
|
○ | ||||||||
| SNMP | ○ | ||||||||
| syslog | ○ | ||||||||
| IPv6 | Supported management protocols: SNMP, Telnet, SSH, Syslog, FTP, TFTP | ||||||||
| VLAN | ○ | ||||||||
| Characteristics | TS-2922-12 | TS-2922-22 | |||||||
| Rated voltage | DC -40.5V ～-57.6V | AC100V～AC240V±10% (50/60Hz) *2 | |||||||
| Rated current | 0.42A（DC-48V） | 0.34A/0.19A | |||||||
| Power consumption | 20.2W | 21.2W | |||||||
| Calorific value | 72.7kJ/h | 76.3kJ/h | |||||||
| Operation temperature | 0～50 ℃ | ||||||||
| Operation humidity | 15～ 85% RH (no condensation) | ||||||||
| Installation style | rack mount | ||||||||
| Dimensions | 425.5(W) x 280(D) x 44(H) mm (projection not included) | ||||||||
| Weight | Approx. 6.5kg | ||||||||
| Certificates | VCCI-A、RoHS | ||||||||
| Option | GNSS antenna, GNSS antenna pole, GNSS extension cable, GNSS amplifier, GNSS arrester, IEEE 802.1AS license | ||||||||
*1：The maximum PPS output is 128 pps for up to 128 slave nodes, 64 pps for up to 256 slave nodes, 32 pps for up to 512 slave nodes, and 16 pps for up to 1,024 slave nodes.
*2：When operating on an AC power supply other than 100 VAC, a compatible power cord for use in Japan is required and must be purchased separately.
Time Server Pro. TS-2924 Specifications
TS-2924
| TS-2924 | ||
|---|---|---|
| -12 | ||
| Time source | GNSS（GPS、QZSS、Galileo、GLONASS） | |
| Holdover accuracy | OCXO Type-A : 400ns/5Hrs 1.5us/24Hrs | |
| LAN interface | SFP+ optical(1000BASE-X, 10GBASE-R) ×2 | |
| PTP | Number of available interface port | 1 |
| Correction accuracy (GPS lock) | UTC within 40 nsec (PRTC-B) | |
| Profile | Default Profile(IEEE1588v2) Telecom profile for Frequency (G.8265.1) Telecom profile for phase/time (G.8275.1) Telecom profile for phase/time (G.8275.2) IEEE802.1AS-2011(gPTP) （Option） |
|
| Protocol | IPv4 UDP/Ethernet | |
| Delay mechanism | Delay request-response （Default Profile, Telecom Profile） Peer Delay（IEEE802.1AS-2011） |
|
| Sync. message transmission type | 1step（Default Profile, Telecom Profile） 2step（IEEE802.1AS-2011） |
|
| Processing capability (max.) (Default profile) |
Sync :128 packets/sec*1 Delay_request (receive) : packets/sec*1 Announce : 8 packets/sec |
|
| Maximum connectable number of slave devices | 128*1 | |
| NTP | Number of available interface port | ー |
| Correction accuracy (GPS lock) | ー | |
| SNTP | ー | |
| Autokey authentication | ー | |
| MD5 authentication | ー | |
| Processing capability (max.) | ー | |
| SyncEther | ○ | |
| Telnet、SSH | ○ | |
| SNMP | ○ | |
| syslog | ○ | |
| RADIUS | ○ | |
| IPv6 | Supported management protocols: SNMP, Telnet, SSH, Syslog, FTP, TFTP | |
| VLAN | ○ | |
| 諸元 | TS-2924-12 | |
| Rated voltage*2 | DC -40.5V ～-57.0V | |
| Rated current | 0.38A | |
| Power consumption | 18.2W | |
| Calorific value | 65.52kJ/h | |
| Operation temperature | -40 ～ 65 ℃ | |
| Operation humidity | 15～ 85% RH (no condensation) | |
| Installation style | Wall mounting, pole mounting | |
| Dimensions | 312(W) x 102(D) x 430(H) mm (projection not included) | |
| Weight | Approx. 6.5kg | |
| Certificates | VCCI-A、RoHS、IP65 | |
| Option | GNSS antenna, GNSS antenna pole, GNSS extension cable, GNSS amplifier, GNSS arrester, IEEE 802.1AS license | |
*1：スレーブ数が、32ノードまでの場合は128pps、64ノードまでの場合は64pps、128ノードまでの場合は32ppsがそれぞれの上限となります。
*2 : TS-2914/TS-2924には、電源コードは同梱されません。
