TS-2910

Time server

TS-2910/2920

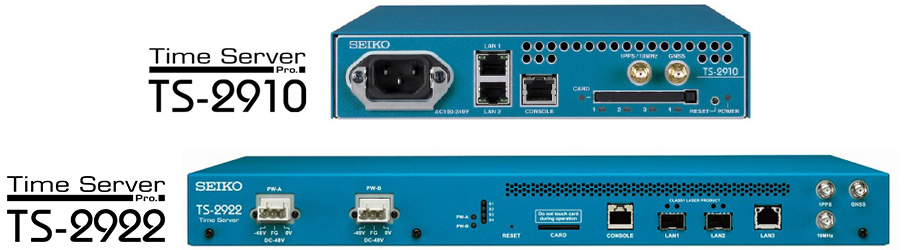

p_ts-2910/2922_main

A PTP grandmaster clock suited for wide-area deployment, high-precision time synchronization systems, typically used in telecom (LTE, 5G) and IoT (TSN) applications.
We offer the TS-2910 series, which compactly integrates the necessary functions, and the TS-2920 series, which supports 10 Gigabit Ethernet.
For indoor installation, you can choose between the TS-2910 (Copper) and TS-2912 (SFP/Optical) models according to your holdover accuracy requirements.
We also offer the outdoor-installation TS-2924 (SFP+/Optical), which supports 10 Gigabit Ethernet — enabling deployment that is not constrained by installation requirements.

Features of TS-2910/2920

Compact size model most suitable for multipoint base deployment

TS-2910 is a best choice for highly accurate time synchronization among mobile backhaul base station.
By installing TS-2910 into LTE-Advanced aggregate base stations it can deliver nanosecond time, frequency and phase synchronization to lower base station.
Redundant time source among aggregate base stations provides high reliability in operation.
The TS-2920 is a model that inherits the functionality of the TS-2910 while also supporting 10 Gigabit Ethernet.

TS-2910 series
TS-2910

TS-2920 series
TS-2910

Use Cases for TS-2910/20

Ideal for high-precision synchronization between mobile backhaul base stations.

By installing the TS-2910 at an aggregation base station, high-precision time synchronization can be achieved for the base stations under its control. Redundancy of time sources between aggregation base stations ensures highly reliable operation.

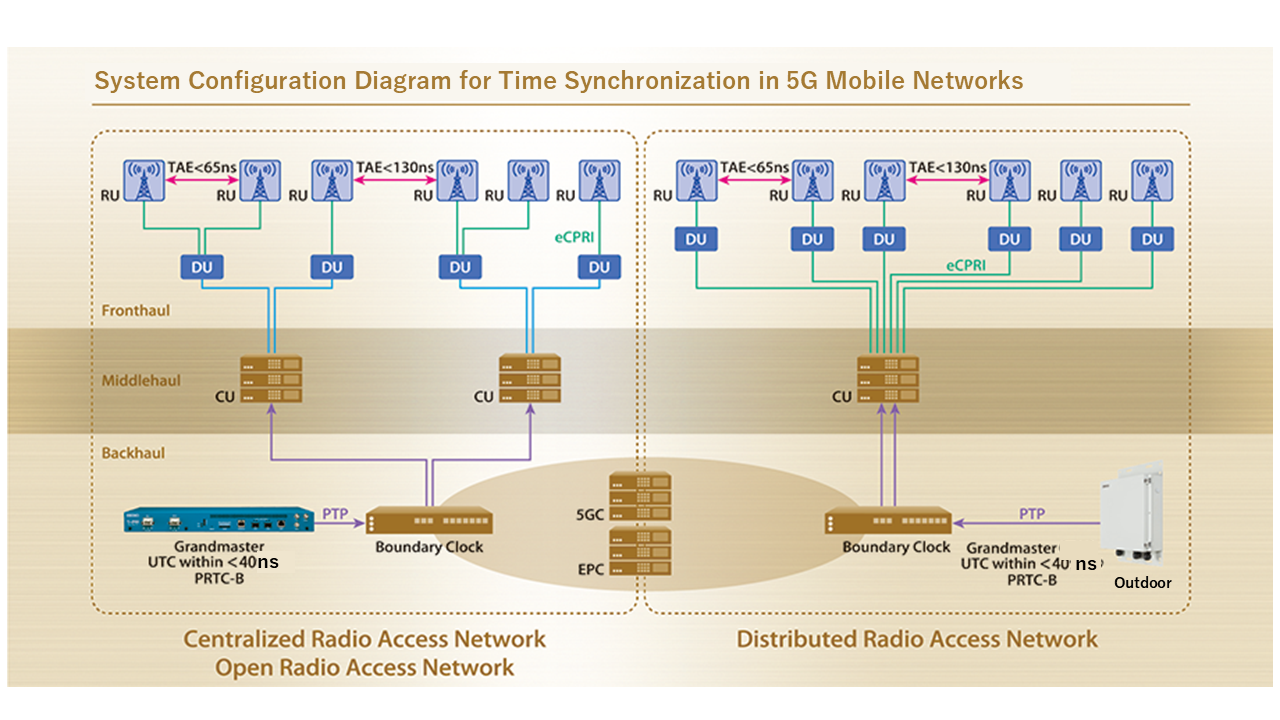

5Gモバイルネットワークにおける時刻同期システム構成図

TS-2910/20 Lineup

TS-2910

Equipped with two highly versatile Copper (electrical) ports for the PTP interface. Ideal for system configurations where all equipment is consolidated within the same facility.

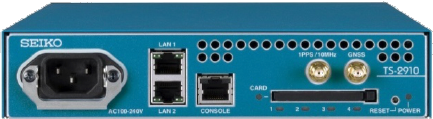

TS-2910-20_22TS-2910-20 / TS-2910-22

■AC model



TS-2910-10 / TS-2910-12

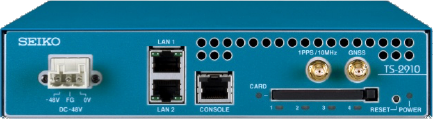

TS-2910-10_12■DC model







TS-2912

Equipped with one SFP (optical) port and one Copper (electrical) port for the PTP interface.
Best suited for wide-area system configurations connecting long distances via optical cable.

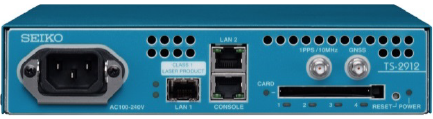

TS-2912-20_22TS-2912-20 / TS-2912-22

■AC model



TS-2912-10 / TS-2912-12

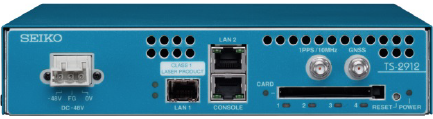

TS-2912-10_12

■DC model







TS-2922

Inherits the basic specifications of the TS-2912, while adding two 10-gigabit SFP+ (optical) ports and one Copper (electrical) port for the PTP interface. Contributes to higher network speed and stability.

TS-2922-22

■AC model



TS-2922-12

TS-2922-12

■DC model

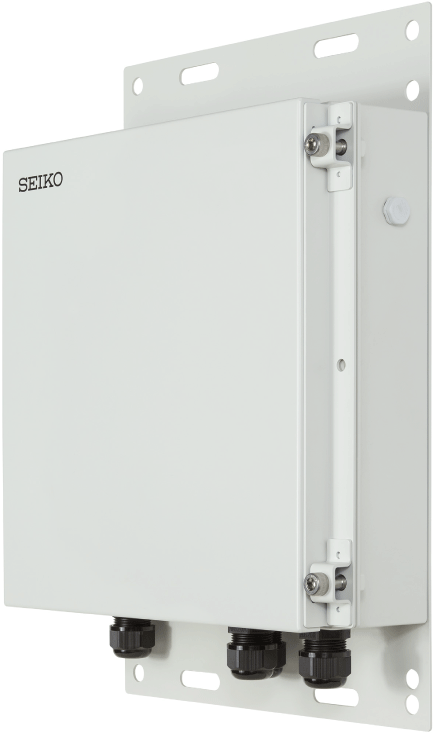

TS-2924

The TS-2924 inherits the functionality of the TS-2912 and is an IP65-compliant model that can be installed outdoors and also supports 10 Gigabit Ethernet (SFP+).
Both are well suited for use at base stations installed in a variety of environments, regardless of location.


TS-2924-12

■DC model











Model Numbers

TS-291X-YZ
X=0: Copper Port x2 / X=2: SFP Port x1 + Copper Port x1 / X=4 Outdoor Model
Y=1: DC Model / Y=2: AC Model
Z=0: OCXO Type-C / Z=2: OCXO Type-A

Time Server Pro. TS-2910 Specifications

TS-2910

TS-2910 TS-2912
-10 -20 -12 -22 -10 -20 -12 -22
Time source GNSS（GPS、QZSS、Galileo、GLONASS）
Holdover accuracy*1 OCXO Type-C: 1.5us/2Hrs 50us/24Hrs OCXO Type-A: 400ns/5Hrs 1.5us/24Hrs OCXO Type-C: 1.5us/2Hrs 50us/24Hrs OCXO Type-A: 400ns/5Hrs 1.5us/24Hrs
Leap second adjustment Yes
Pulse output 1PPS、10MHz
LAN Interface 100BASE-TX / 1000BASE-T ×2 SFP-optical(1000BASE-X) ×1
100BASE-TX / 1000BASE-T ×1
SyncEther Yes
PTP Number of available interface port 1
Correction accuracy (GPS lock) UTC ±40nsec (PRTC-B)
Profile Defailt Profile(IEEE1588v2)
Telecom profile for Frequency (G.8265.1)
Telecom profile for phase/time (G.8275.1 , G.8275.2)
IEEE802.1AS-2011(gPTP) (Optional lisence required)
Protocol IPv4 UDP/Ethernet
Delay mechanism Delay request-response (Defailt,Telecom Profile)
Peer Delay (IEEE802.1AS-2011)
Sync. message transmission type 1 step (Default Profile, Telecom Profile)
2 Step (IEEE802.1AS-2011)
Processing capability (max.)
(Default profile)		 Sync :128 packets/sec*2
Delay_request (receive) : 128 packets/sec*2
Announce : 8 packets/sec
Maximum connectable number of slave devices 128*2
NTP Number of available interface port 2
Correction accuracy (GPS lock) ±1msec
SNTP Yes
Autokey authentication -
MD5 authentication -
Processing capability (max.) 500 packets/sec
Telnet, SSH Yes
SNMP Yes
syslog Yes
IPv6 Supports management functions only
(SNMP, telnet, ssh, syslog, ftp, tftp)
VLAN Yes
TS-2910/TS-2912
Rated voltage AC 100V-240V±10% (50/60Hz) *3 DC -40.5V - -57V
Rated current 0.34A/0.19A 0.37A
Power consumption 20W 18W
Calorific value 72.0kJ/h 64.8kJ/h
Operation temperature 0 to 50 ℃
Operation humidity 15 to 85% RH (no condensation)
Installation style On the shelf (horizontal)
Dimensions 208(W) x 282(D) x 44(H) mm (projection not included)
Weight Approx. 2Kg
Certificates VCCI-A, RoHS
Option GNSS antenna
antenna holder
IEEE802.1AS license

*1 Depending on the Oscillator (hardware) selected for the required holdover performance.
*2 Maximum processing capability depending on the number of the slave are 128 packets/sec for up to 32 nodes, 64 packets/sec for up to 64 nodes and 32 packets/sec for up to 128 nodes.
*3 In case the device is used at AC 240V an applicable AC power cord is necessary.

Time Server Pro. TS-2922 Specifications

TS-2922

製品名 TS-2922
-12 -22
Time source GNSS（GPS、QZSS、Galileo、GLONASS）
Holdover accuracy OCXO Type-A : 400ns/5Hrs 1.5us/24Hrs
Pulse output 1PPS、10MHz
LAN interface SFP-optical(1000BASE-X/10GBASE-R) ×2
100BASE-TX / 1000BASE-T ×1
PTP Number of available interface port 1
Correction accuracy (GPS lock) UTC within 40 nsec (PRTC-B)
Profile Default Profile(IEEE1588v2)
Telecom profile for Frequency (G.8265.1)
Telecom profile for phase/time (G.8275.1)
Telecom profile for phase/time (G.8275.2)
IEEE802.1AS-2011(gPTP) （Option）
Protocol IPv4 UDP/Ethernet
Delay mechanism Delay request-response （Default Profile, Telecom Profile）
Peer Delay（IEEE802.1AS-2011）
Sync. message transmission type 1step（Default Profile, Telecom Profile）
2step（IEEE802.1AS-2011）
Processing capability (max.)
(Default profile)		 Sync :128 packets/sec*1
Delay_request (receive) : packets/sec*1
Announce : 8 packets/sec
Maximum connectable number of slave devices 1024*1
NTP Number of available interface port ー
Correction accuracy (GPS lock) ー
SNTP ー
Autokey authentication ー
MD5 authentication ー
Processing capability (max.) ー
SyncEther ○
Telnet、SSH



 ○
SNMP ○
syslog ○
IPv6 Supported management protocols: SNMP, Telnet, SSH, Syslog, FTP, TFTP
VLAN ○
Characteristics TS-2922-12 TS-2922-22
Rated voltage DC -40.5V ～-57.6V AC100V～AC240V±10% (50/60Hz) *2
Rated current 0.42A（DC-48V） 0.34A/0.19A
Power consumption 20.2W 21.2W
Calorific value 72.7kJ/h 76.3kJ/h
Operation temperature 0～50 ℃
Operation humidity 15～ 85% RH (no condensation)
Installation style rack mount
Dimensions 425.5(W) x 280(D) x 44(H) mm (projection not included)
Weight Approx. 6.5kg
Certificates VCCI-A、RoHS
Option GNSS antenna, GNSS antenna pole, GNSS extension cable, GNSS amplifier, GNSS arrester, IEEE 802.1AS license

*1：The maximum PPS output is 128 pps for up to 128 slave nodes, 64 pps for up to 256 slave nodes, 32 pps for up to 512 slave nodes, and 16 pps for up to 1,024 slave nodes.
*2：When operating on an AC power supply other than 100 VAC, a compatible power cord for use in Japan is required and must be purchased separately.

Time Server Pro. TS-2924 Specifications

TS-2924

TS-2924
-12
Time source GNSS（GPS、QZSS、Galileo、GLONASS）
Holdover accuracy OCXO Type-A : 400ns/5Hrs 1.5us/24Hrs
LAN interface SFP+ optical(1000BASE-X, 10GBASE-R) ×2
PTP Number of available interface port 1
Correction accuracy (GPS lock) UTC within 40 nsec (PRTC-B)
Profile Default Profile(IEEE1588v2)
Telecom profile for Frequency (G.8265.1)
Telecom profile for phase/time (G.8275.1)
Telecom profile for phase/time (G.8275.2)
IEEE802.1AS-2011(gPTP) （Option）
Protocol IPv4 UDP/Ethernet
Delay mechanism Delay request-response （Default Profile, Telecom Profile）
Peer Delay（IEEE802.1AS-2011）
Sync. message transmission type 1step（Default Profile, Telecom Profile）
2step（IEEE802.1AS-2011）
Processing capability (max.)
(Default profile)		 Sync :128 packets/sec*1
Delay_request (receive) : packets/sec*1
Announce : 8 packets/sec
Maximum connectable number of slave devices 128*1
NTP Number of available interface port ー
Correction accuracy (GPS lock) ー
SNTP ー
Autokey authentication ー
MD5 authentication ー
Processing capability (max.) ー
SyncEther ○
Telnet、SSH ○
SNMP ○
syslog ○
RADIUS ○
IPv6 Supported management protocols: SNMP, Telnet, SSH, Syslog, FTP, TFTP
VLAN ○
諸元 TS-2924-12
Rated voltage*2 DC -40.5V ～-57.0V
Rated current 0.38A
Power consumption 18.2W
Calorific value 65.52kJ/h
Operation temperature -40 ～ 65 ℃
Operation humidity 15～ 85% RH (no condensation)
Installation style Wall mounting, pole mounting
Dimensions 312(W) x 102(D) x 430(H) mm (projection not included)
Weight Approx. 6.5kg
Certificates VCCI-A、RoHS、IP65
Option GNSS antenna, GNSS antenna pole, GNSS extension cable, GNSS amplifier, GNSS arrester, IEEE 802.1AS license

*1: The upper limit is 128 pps for up to 32 slave nodes, 64 pps for up to 64 slave nodes, and 32 pps for up to 128 slave nodes.
*2: A power cord is not included with the TS-2914/TS-2924.
